SM Series

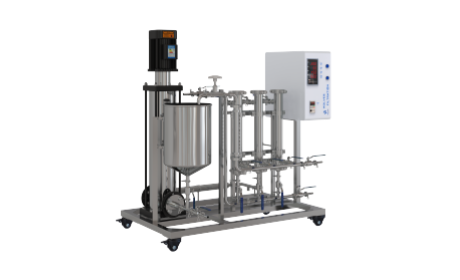

Multifunctional Membrane Separation Device SM-1812
Basic information
● Model：Multi SM-1812
● Process capacity：3～20L/H
● Membrane element：GE imported original coil membrane, single film area0.26㎡
● Power unit：Imported GRUNDFOS pump, 0～16.8Bar（Adjustable frequency）
● Material circulation tank: Effective volumeV=16L
Description
Specification
Optional items
System Overview●Laboratory type multi-SM-1812 (manual) mainly conduct separation and purification
of ultrafiltration UF, nano-filtration NF and reverse osmosis RO, which can be filtered,
discolored, desalted, purify and concentrated.
●According to the size of the molecular weight of the separated material, the selection of the membrane was carried out, and the material of 0.03μm to 100daltion could be separated.
●The equipment has the advantages of easy cleaning, maintenance and freedom of use.

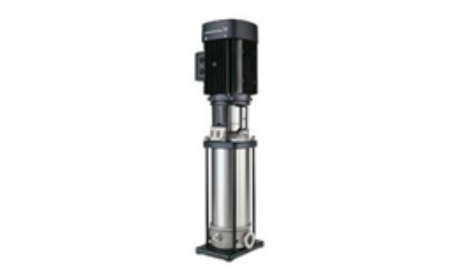

Power Unit
●Imported GRUNDFOS pump
●Variable frequency control, 20～50Hz adjustable, wide range use
●Flow rate：200～1100L/H
●Pressure：0～16.8Bar adjustable
Membrane Shell
●Three pieces in parallel
●Connection mode: High pressure clamp quick disconnection, withstand voltage20Mpa
●Mateiral：AISI 304
●Surface treatment: External surface brushed, inner surface polishing, food hygiene grade
Roll type membrane element
●GE imported original roll type membrane, 3 pieces.
●Membrane type: 1812 industrial separation membrane, the anti-contamination
membrane
●Applicable range：Microfiltration, ultrafiltration, nanofiltration and reverse osmosis.
●According to the user's process, we can choose the different brand membrane of 1812,
including the domestic roll membrane.

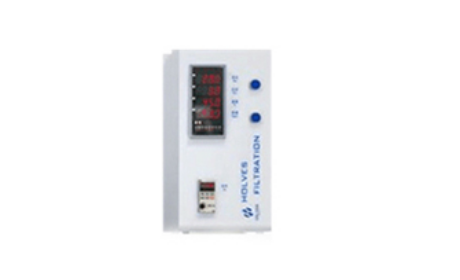

Control cabinet
●On-site instrument control cabinet
●Control mode: PID meter control, automatic adjustment
●Sensor: temperature electrode, pressure sensor, frequency conversion motor
●Flowmeter: On-site flow meter, manual adjustment
● Instrument: Four-in-one display + control instrument, variable frequency regulator
● Instrument: Four-in-one display + control instrument, variable frequency regulator
Material Standard
●Contact material: AISI 304, food grade hose
●Non-contact material:AISI 304, carbon steel + spray paint

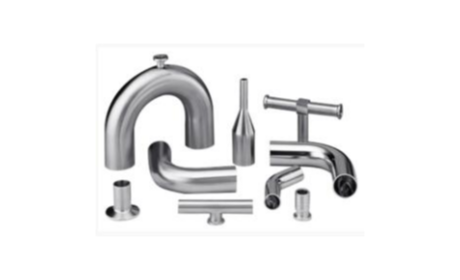

●Pipeline: sanitary seamless stainless steel tube
●Valve: Food grade health level direct ball valve, diaphragm valve
