- Model：CM-05
- Process Capacity：30-60L/H
- Membrane Element：French original imported ceramic membrane
- Contact Material：Material AISI 304, food grade hose
- Material Circulation Tank：Effective volume V=30L

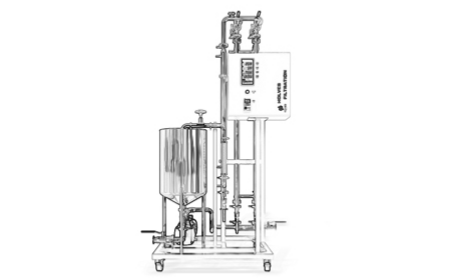

System survey
● Ceramic membrane experiment device (CM-05) can be applied to microfiltration,
ultrafiltration and fine ultrafiltration
● the membrane can be selected according to the size of material molecular weight, it can
separate the material of 1.4 μm -1KD
● With advantages of simple and flexible operation and easy cleaning, etc.

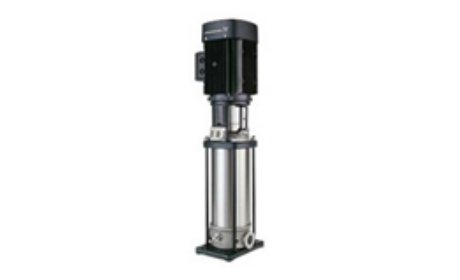

Power Unit
Imported GRUNDFOS pump
Frequency converting control
High pressure protection device

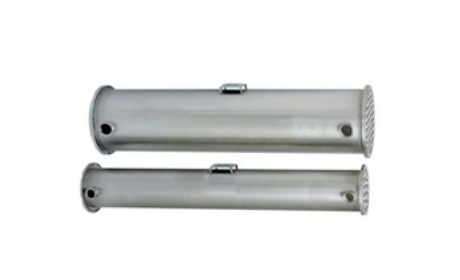

Membrane Shell
PH range：0-14
Working pressure：<95℃
Maximum working pressure：<10bar
Connection type：High pressure clamp quick disconnection

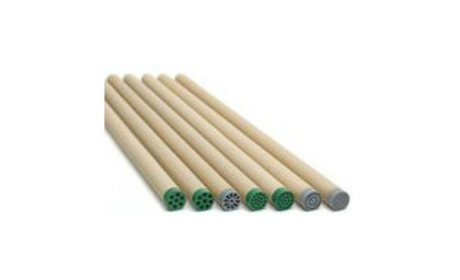

Ceramic Membrane Element
French original imported ceramic membrane
Mmebrane type：φ25mm：580/1178mm
Range of application：Microfiltration, ultrafiltration and fine ultrafiltration

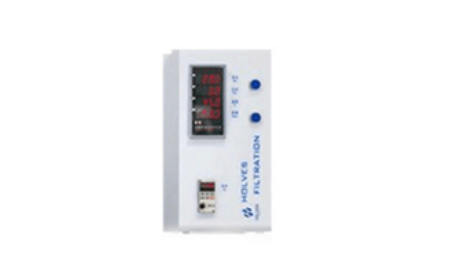

Electrical Control Cabinet
Temperature, pressure, on-line monitoring of liquid velocity
Pump frequency conversion controller, real-time display speed and frequency
Temperature, pressure preset alarm

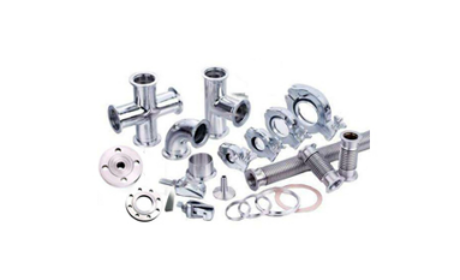

Material Standard
Contact material part: Material AISI 304, food grade hose material circulation tank
Non-contact material part: Material AISI 304, carbon steel + spray paint
Pipeline: Sanitary seamless stainless steel tube
Valves: Food grade sanitary direct ball valves, diaphragm valves
